Quick answer: glass bottle wall thickness is not a single number — it is a dimensional limit you write into the purchase order. Published glass bottle inspection standards work to a minimum sidewall thickness of 1.2 mm, a sidewall tolerance of ±0.2 mm, a body diameter and height tolerance of ±2 mm, and a base thickness of at least 1.5 mm on larger 500 ml formats.
Below we explain how wall thickness and gram weight are measured, where they cause failures, how much weight lightweighting can safely remove, and exactly which numbers to put in your RFQ and QC plan.

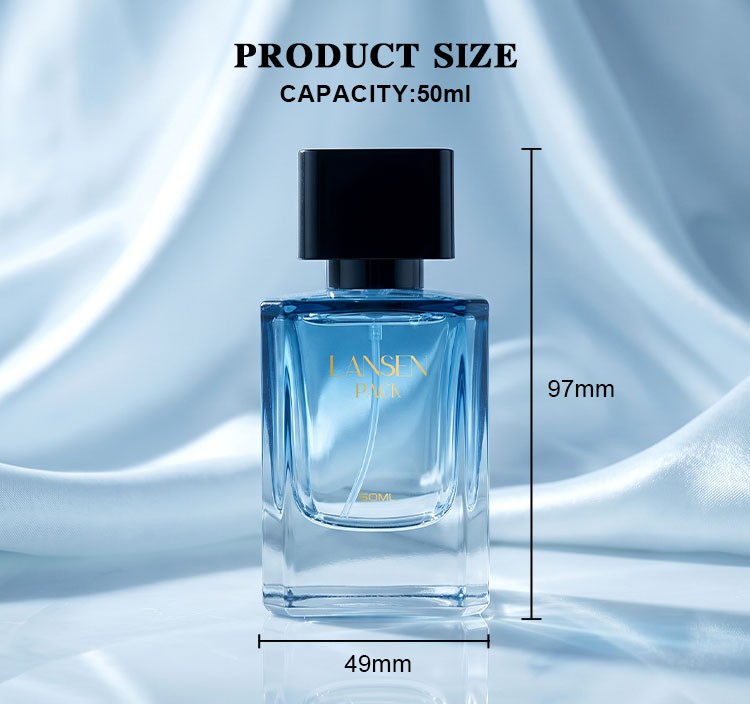

Ask five glass factories for the wall thickness of a 50 ml perfume bottle and you will get five different answers. That is because thickness is not a catalogue number — it is a manufacturing result that depends on the mould, the bottle shape, the base design and how the molten glass flows during forming. What buyers actually need is not a universal figure, but a tolerance band they can measure, accept or reject.
That single distinction decides whether your first production run arrives intact or turns into a leakage claim three months later. In this guide we break down the numbers behind glass bottle wall thickness and weight, the failure patterns they prevent, and the specification language that keeps a supplier accountable.
What Is a Standard Glass Bottle Wall Thickness?
There is no global ISO figure that every plant works to, but the published inspection standards used by glass bottle exporters converge on the same order of magnitude. One widely referenced glass bottle inspection standard specifies the following acceptance limits:
- Sidewall thickness: ±0.2 mm of the agreed nominal
- Bottle diameter: ±2 mm
- Total height (excluding the closure): ±2 mm
- Base thickness: not less than 1.5 mm on a 500 ml bottle
- Large-format base: 10 mm ±2 mm edge, with the centre no thinner than 1.5 mm
Separately, a technical guide published by a packaging supplier cites 1.2 mm as the international minimum thickness for a good-quality glass bottle. The practical reading for a buyer is simple: treat 1.2 mm as the floor for a sound sidewall, and 1.5 mm as the floor for the base of anything you intend to fill and ship in volume.
The four numbers to remember
- 1.2 mm — published minimum glass thickness
- ±0.2 mm — typical sidewall thickness tolerance
- ±2 mm — typical diameter and height tolerance
- 1.5 mm — minimum base thickness on 500 ml+ bottles
Thickness is also not uniform around a single bottle. The sidewall, shoulder, neck ring and base are formed under different conditions, so a bottle that measures perfectly at mid-body can still be thin at the shoulder radius or thick at the heel. That is why serious buyers measure a distribution of points with a wall thickness gauge rather than one spot on one sample.
Why Wall Thickness Decides Whether Your Bottle Survives
In airless and pump systems, most field failures that look like a pump problem are actually a body problem. A packaging manufacturer’s technical analysis of wall thickness records the same pattern repeatedly: buyers blame the pump, while the real cause is an unbalanced wall.
| If the wall is too thin | If the wall is too thick |
|---|---|
| Deformation during transport or storage | Uneven cooling during moulding |
| Unstable piston travel in airless systems | Shrink marks and internal stress |
| Sidewall stress under repeated pumping | Dimensional drift between parts |
| Cracking near the shoulder or base | Poor cap and pump assembly matching |
| Leakage from thread or seal misalignment | Higher material and freight cost per unit |
A glass bottle wall thickness that drifts outside its band never announces itself at goods-in. It surfaces later, as a return, a leak claim or a carton that arrives damp.
The counter-intuitive part is that thicker is not stronger. When one section of a bottle cools far slower than another, the material shrinks unevenly. The bottle can pass a visual check and still drift out of tolerance on the dimensions that matter — the neck thread, the sealing land, the base. For skincare airless pump bottles, even a small dimensional shift changes how reliably the piston travels, which is exactly the failure a customer experiences as “the pump stopped working”.
The same logic applies to glass: a heavy, unbalanced base is not protection, it is weight you pay to ship twice — once as material, once as freight.
Glass Bottle Weight vs Wall Thickness: Two Different Specifications
Weight and thickness are correlated, but they are not interchangeable, and confusing them is one of the most common sourcing mistakes. The link between glass bottle wall thickness and gram weight is directional rather than proportional: more glass does add weight, but the same total weight can be distributed very differently across sidewall, shoulder and base. As a B2B sourcing guide on perfume bottle weight puts it, capacity and weight are separate specifications: two 50 ml bottles can weigh very differently because their shape, glass thickness and construction differ, and two bottles of similar weight can hold different volumes.

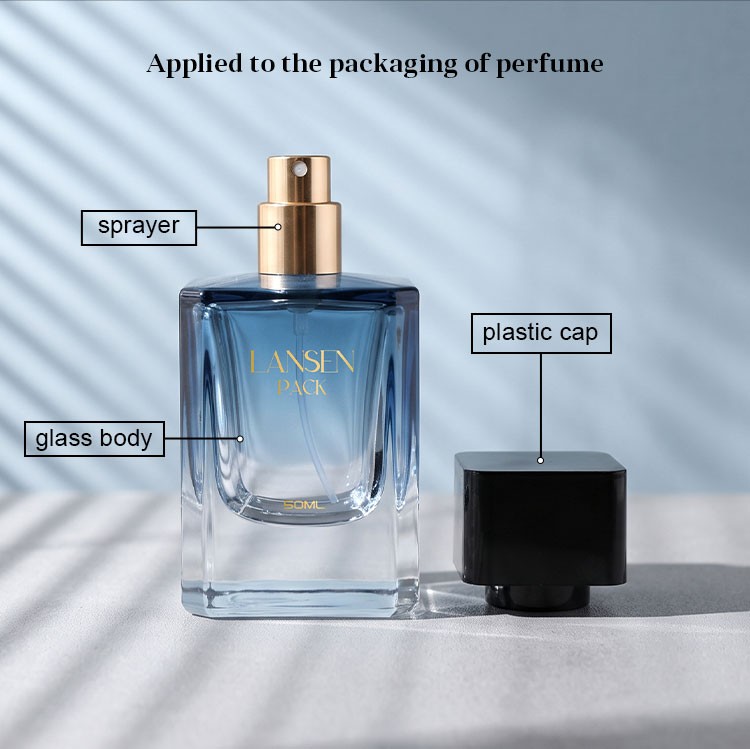

There is a second trap: the empty bottle is not the shipping unit. The number that moves your freight invoice is the complete packaging weight — glass body plus pump, collar, cap, decoration, label, insert and outer carton. Aluminium, zamac, wood and plastic caps can differ substantially in weight, so a “light” glass bottle paired with a heavy metal cap can end up heavier than a simpler, heavier bottle with a plastic cap.
Quote these weights separately, never as one figure:
- Empty glass bottle weight (g)
- Complete set weight — bottle + pump + collar + cap (g)
- Units per carton and gross carton weight (kg)
Weight alone should never be used as a quality verdict. A heavier bottle is not automatically better made, and a lighter bottle is not automatically cheap; glass appearance, dimensions, surface finish, neck finish and functional performance all carry equal weight in the assessment. If your brand sells a 50g matte white glass cream jar or a 100ml crystal cut glass perfume bottle, the specification sheet — not the feel in the hand — is what protects you at bulk production.
Lightweighting: How Much Glass Weight Can You Safely Remove?
Lightweighting is the industry’s answer to material and freight cost, and the published numbers show how far it has already gone:
| Published example | Weight outcome | Source |
|---|---|---|
| Ardagh 75 cl lightweight wine bottle (2025) | 300 g, engineered for high-speed filling lines | Sustainable Packaging News |
| 250 ml lightweight bottle | 200 g, described as 20% lighter | Glassworks International |
| 200 ml carbonated soft-drink bottle | reduced from 170 g (2002) to 140 g | British Glass |
Lightweighting works because the weight was never doing the work — the shape and the thickness distribution were. Carbonated drinks and wine are the hardest cases because the container must hold internal pressure and survive a filling line, so the fact that a 75 cl bottle can now be produced at 300 g tells you how much headroom exists in low-pressure cosmetic formats.
There is a limit, though, and buyers hit it from both sides. As one fragrance sourcing guide notes, every capacity has a floor on glass weight — a 5 ml vial is light, but it still needs a pump and cap with enough thread to feel solid. Shrinking the hardware to suit a tiny bottle produces a wobbly actuator that is far more obvious on a 15 ml than on a 100 ml. The practical rule is to let the glass change size while holding the pump and cap family constant.
How to Specify Thickness and Weight in Your RFQ
Vague briefs produce vague quotes. Glass bottle wall thickness is fixed at the mould, so it is the one specification you cannot renegotiate once tooling is cut — it belongs in the brief, not in a follow-up email. Copy this table into your RFQ and every supplier will price the same object:
| Specification | What to state | Why it matters |
|---|---|---|
| Capacity | Nominal ml / g, plus fill level | Drives mould and carton selection |
| Sidewall thickness | Nominal mm + tolerance (±0.2 mm) | Strength, breakage, weight |
| Base thickness | Minimum value (e.g. ≥1.5 mm) | Impact resistance at the heel |
| Dimensions | Height & diameter with ±2 mm | Cap fit, label fit, carton fit |
| Empty bottle weight | Target grams, with a range | Freight cost and perceived quality |
| Packed weight | Units/carton + gross carton weight | Container loading and landed cost |
Then tie the numbers to a physical reference. Approve a golden sample, record its measured thickness at a fixed set of points, and make that record part of the order. Without a golden sample, “consistent with the approved sample” means nothing in a dispute — you can browse our custom glass bottles and glass cosmetic jars ranges to see how dimension drawings and weight data are supplied per model.
Sampling and QC Checks Buyers Should Require
Once the specification is fixed, verification is mechanical. Build these checks into your glass bottle quality control routine and ask for the records before the balance of payment leaves your account:
- Gauge measurement across samples — verify glass bottle wall thickness at the sidewall, shoulder and base on bottles from different mould cavities, not on one hero sample
- Uniformity check — a wall that wanders around the circumference will crack at the thinnest point
- Base and heel inspection — look for star cracks, thin heels and mould marks inside the base
- Neck and thread verification — the closure must seat, seal and torque consistently
- Functional test after filling — pump stroke, leakage and sealing on the actual formula, not water
- Transport simulation — filled bottles packed as shipped, then dropped and vibrated
- Weight verification at carton level — confirm gross carton weight against the quotation before booking freight
Run these on a sample-size plan rather than by eye. A formal AQL sampling scheme converts “these look fine” into an accept/reject decision you can defend with your own customer — and it catches the slow drift in thickness that visual inspection will never see.
The bottom line: specify thickness as a tolerance, specify weight as a range, and verify both with a gauge on a sample plan. Bottles fail in the field because a number nobody wrote down was never checked.
