Cosmetic packaging tolerances decide whether your bottle actually fits its pump, whether your label claim survives filling, and whether your line runs at production speed. Two 50 ml bottles can look identical in a photo and still be incompatible with the same crimp collar. This guide gives you the tolerance bands buyers normally approve for glass and plastic cosmetic containers, the standards behind them (ISO 9058 and ISO 8106), and the five-step approval process that prevents a re-run.
Cosmetic packaging tolerances: the short answer
Glass and plastic cosmetic containers are normally produced to ±1.0 mm on height and diameter, ±5% on weight and ±3% on capacity. Brimful capacity typically sits 5–15% above the nominal fill volume. Neck-finish dimensions are held far tighter than body dimensions, because a closure has to seal. Tighter cosmetic packaging tolerances are possible, but they change tooling, price and yield — so specify them before the mould is cut, not after the first shipment.
Because cosmetic packaging tolerances are a contract term, every drawing we issue for a custom perfume bottle states height, body diameter, neck bore, thread or crimp dimension, weight and brimful capacity with a tolerance beside each value. That one habit removes most of the arguments that otherwise surface three months later at the filling line.
What Are Cosmetic Packaging Tolerances?
A tolerance is the permitted range between the nominal dimension on a drawing and what the mould actually produces. Glass is formed from molten gobs at high temperature and blown against a steel mould; plastic is injection or blow moulded and shrinks as it cools. Neither process hits an exact number every cycle, so the drawing declares a window instead: 79.0 mm ±1.0 mm means 78.0–80.0 mm is acceptable and 80.6 mm is not. Cosmetic packaging tolerances are simply that window, agreed in writing before production.
International standards formalise the practice. ISO 9058:2008 specifies tolerances for glass bottles of circular cross-section with a nominal capacity from 50 ml to 5,000 ml; it was published in March 2008 as a second edition and ISO confirmed it again in 2025, so it remains current. Capacity is measured separately under ISO 8106, which specifies a gravimetric method for determining the capacity of glass containers and their compliance with specification limits.
Tolerance also stacks. A 0.4 mm-high cap sitting on a +1.0 mm bottle can push a finished unit 1.4 mm over a retail shelf spec, which matters for gift boxes, displays and palletised freight.
Typical cosmetic packaging tolerances at a glance
- Height: ±1.0 mm
- Body diameter: ±1.0 mm, often ±1.5 mm on larger containers
- Weight: ±5%
- Capacity: ±3% typical
- Tall bottles: a height-proportional band is common — for example 1.3% of height on bottles over 100 mm
Those ranges appear in published supplier specification guides and in contract-packer requirements. The 1.3%-of-height rule, and the demand that brimful capacity and fill-point tolerances match the approved technical drawing exactly, are both stated in Ozpak’s glass bottle specification.
Cosmetic Packaging Tolerances by Component: The Numbers That Matter
Not every dimension deserves equal attention. Buyers who get into trouble have usually under-specified one of these cosmetic packaging tolerances:
| Dimension | Practical tolerance | What breaks if it drifts |
|---|---|---|
| Neck bore / finish | Tightest of all; defined by the GPI finish | Leaks, loose crimps, dip tubes that miss the base |
| Crimp ring diameter | Set by the pump supplier, not the bottle | Sprayer will not seat or rotates freely |
| Overall height | ±1.0 mm typical | Filling-line jams, carton and shelf fit |
| Body diameter / ovality | ±1.0 mm, wider on large jars | Label wrinkles, cap rub, sleeving failures |
| Weight | ±5% | Freight cost, perceived quality, thermal shock |
| Brimful capacity | ±3% typical | Under- or over-filled units against the label claim |
Ovality deserves its own line in any cosmetic packaging tolerances schedule. Bodies are rarely perfectly round after forming, and glass bottle specifications in the beverage sector set the objective at ±(0.5 + 0.12 × d) of the body diameter tolerance range: the wider the container, the wider the permitted out-of-round. If you run pressure-sensitive labels or shrink sleeves, ask for the ovality figure explicitly — a 1 mm flat spot is invisible in a sample photo and very visible on a labelled shelf.
Neck finishes are where cosmetic packaging tolerances pay off fastest. An 18/415 closure will not seal an 18/410 bottle even though both read “18”; the second number describes thread style and height. Our cosmetic bottle neck finish guide lists common finishes and the closures they accept.
Capacity vs Brimful Capacity: Why a 50 ml Bottle Holds More Than 50 ml
This is the most common source of confusion in cosmetic packaging tolerances. Nominal capacity is the fill volume printed on the label; brimful (overflow) capacity is the physical volume to the very rim. Published supplier guidance puts brimful capacity roughly 5–15% above nominal, so a “30 ml” bottle commonly measures about 33–36 ml to the brim. The headroom exists because the closure displaces volume, liquids expand with temperature, and nozzles need margin.
Concrete numbers make it commercial: A 60 cc amber glass bottle specified with a 66.6 cc overflow capacity comfortably holds a 2 fl oz (59.1 ml) fill. An 8 oz Boston Round converts to only 236.6 ml, so a 250 ml label claim depends on which factory’s mould you buy: one supplier’s 8 oz bottle measures 247.2 cc brimful and cannot carry the claim, while a differently tooled 8 oz bottle measures 255.1 cc and can. Same nominal size, different cosmetic packaging tolerances, different legal exposure.
Measured capacity is a gravimetric value, not a ruler value: ISO 8106 calculates brimful and filling capacity from the mass of water in the container, corrected for water temperature and density. A supplier’s capacity figure should always arrive with its test method and tolerance attached.
Approve capacity on the brimful number plus your closure, then confirm the label claim with a fill test using your actual product viscosity. A 50 ml serum and a 50 ml oil behave differently on the same filling head. In pump formats the dip tube and pump body sit inside the bottle and consume 2–4 ml of usable volume, which is why our 30 ml airless pump bottle drawings state both brimful capacity and usable fill after assembly.
How to Read a Cosmetic Bottle Specification Sheet and Drawing

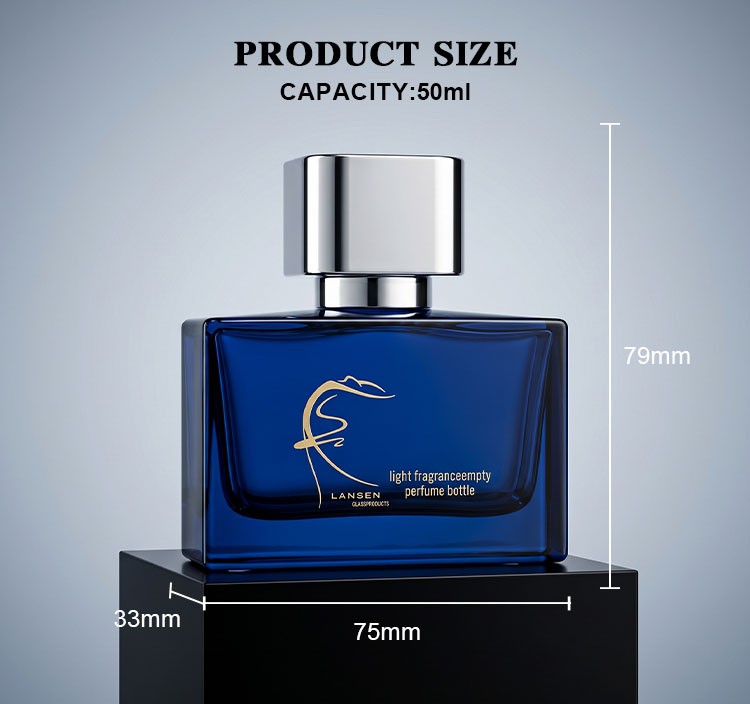

A proper specification has two halves: a dimensioned drawing with tolerances, and a parameter table with values — cosmetic packaging tolerances belong on both. If a supplier sends only a photo and a price, you are one mould variation from a rejected shipment. Read the drawing in this order:
- H — overall height: base to the top of the finish; sets carton height, shelf fit and line clearance.
- D — body diameter: the widest point, driving label wrap length and shelf spacing.
- d — neck / bore diameter: the internal opening; decides whether your pump, dropper or reducer fits.
- T — thread height: on screw finishes, what the closure engages.
- S — crimp dimension: on crimp finishes, the ring diameter the collar is pressed onto.
Then confirm the parameter table states capacity, brimful capacity, weight, neck finish in GPI format, material, and a tolerance for every dimension — these are the cosmetic packaging tolerances that decide whether the pack assembles at all. Industry guidance is blunt: ask for a dimensioned drawing rather than a photo, ask for the neck finish stated explicitly, ask for stated tolerances, and ask for a compliance statement. A supplier who cannot produce a dimensioned drawing is not the supplier for a production order.

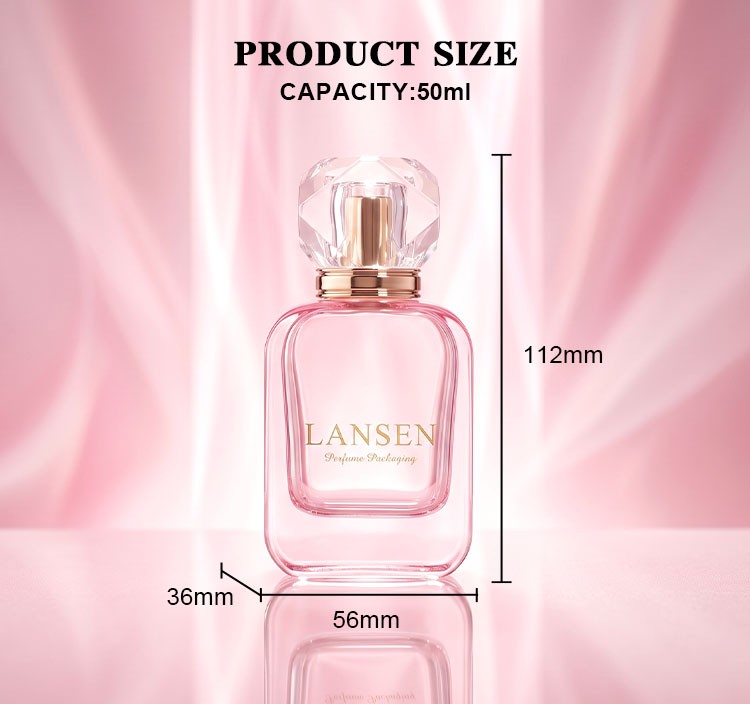

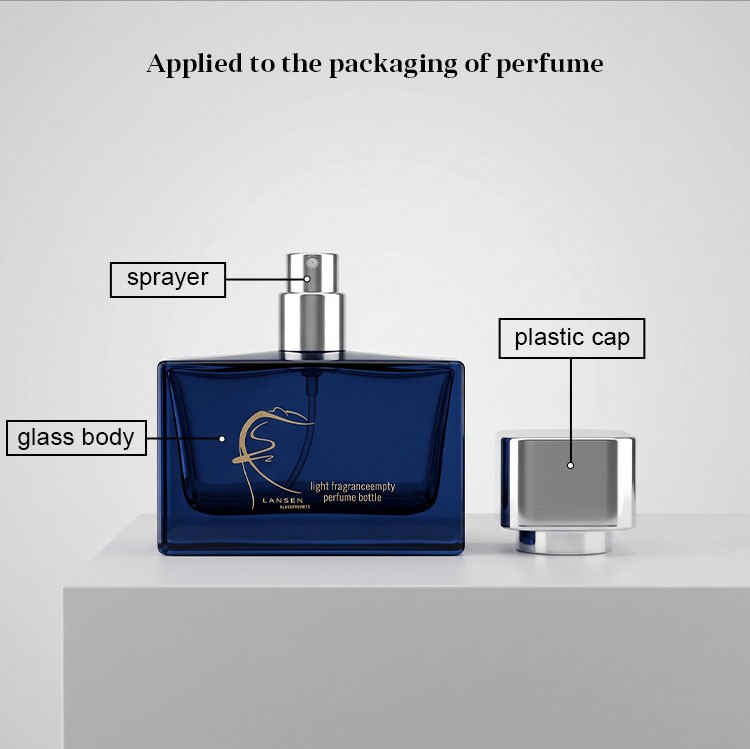

For multi-component packs — bottle, pump, collar, overcap, box insert — always tolerance the assembly. Each part can sit inside its own window and the combination still fail: a cap 0.3 mm under nominal on a bottle 0.8 mm over nominal removes 1.1 mm of clearance the insert assumed. When we quote a 50 ml flat square glass perfume bottle, the drawing pack covers bottle, closure and assembled height, because that is the number the brand’s packaging line checks.
How to Approve Cosmetic Packaging Tolerances in Five Steps
Cosmetic packaging tolerances are approved in sequence, and skipping a step is how brands end up re-ordering tooling:
- Specify on the RFQ, not the PO. State capacity, brimful expectation, neck finish, material, decoration and filling-line constraints. Sensitivity to 0.5 mm must be declared up front, because tighter cosmetic packaging tolerances change price and yield.
- Sign off the drawing. Require a PDF drawing carrying a tolerance on every dimension, plus the parameter table. Compare it against your closure drawing before signing; a mismatch caught here costs nothing.
- Approve a pre-production sample by measurement. Calipers on height and diameter, a scale for weight, a gravimetric or graduated-cylinder check for capacity. Keep the approved sample as the golden reference with its readings recorded.
- Run a fill test with your product and closure. Confirm fill volume, headspace, leak performance and, for pumps and sprayers, the crimp or torque setting. This is where capacity tolerance becomes a label-claim decision.
- Inspect mass production against the same drawing. Use a defined sampling plan and defect classes rather than “looks fine”: critical defects at zero acceptance, major defects typically 1.0–2.5 AQL, minor cosmetic defects 2.5–4.0 AQL, per the AQL framework buyers and inspection firms quote.
Two additions make the sequence robust: write the overrun allowance and spare-parts quantity into the PO, since glass runs generate a scrap percentage that must be replaced; and keep the drawing revision number on every document: most “the supplier changed something” disputes are revision-control failures between two PDFs that both look official.
Which Cosmetic Packaging Tolerances Actually Cause Rejections?
Inspection data rarely shows random failures. Height and diameter spread jam automated filling and capping. Ovality and bulge appear as wrinkled labels and caps that rub through their coating in transit. Weight spread quietly inflates freight and makes a premium bottle feel inconsistent in the hand. Neck bore and finish variation produce leaks, loose crimps and sprayers that will not seat — the defects most likely to be classified critical, because they cause product loss rather than cosmetic disappointment.
Decoration adds its own cosmetic packaging tolerances layer. Screen printing, hot stamping and coating registration all assume the bottle sits where the fixture expects it, so a 1.5 mm diameter swing shifts artwork relative to the moulded edge. If your design places print within 2 mm of a shoulder or facet, give the decoration team the tolerance band before artwork is finalised. Related reading: glass bottle wall thickness and weight explains how the weight band interacts with strength and freight.
Finally, match tolerance discipline to product risk. A stock glass cosmetic bottle range for a fast launch can live inside standard bands. An airless system, a child-resistant closure or an automated high-speed line usually cannot — that is when a written tolerance schedule earns its cost. The same logic applies across our airless bottle range, where dose accuracy depends on the actuator as much as on the container.
Next Step: Put Your Cosmetic Packaging Tolerances on Paper
Cosmetic packaging tolerances are cheap to agree and expensive to discover. A one-page tolerance schedule — dimensions, bands, capacity method, neck finish, AQL levels and a golden-sample reference — prevents almost every dispute that otherwise surfaces after the container has sailed. Send your target spec, a closure drawing, or a competitor sample with caliper readings, and we will return a dimensioned drawing with tolerances for review before any tooling is committed.
