This 100ml flacon measures 122 mm from the base to the top of the fitted cap and 54 mm across the body. Both figures come from the size drawing, which states the capacity as 100ml, and the height is taken with the closure in place, so it already includes the cap. The same mould family is also made in 30ml and 50ml, so one silhouette carries a travel size, a standard size and a large size without the design shifting between them.
The body is straight-sided with a rounded shoulder and a short neck, and the glass is left translucent in a smoky grey that is clear enough to show the dip tube running down the inside. Because the wall is not coated opaque, light passes through the body instead of sitting on the surface, so the glass reads darker where the wall is thick and lighter where it thins towards the shoulder. The base is thick and level, which keeps the bottle steady and gives the shoulder its weight.
The closure is a solid wooden cap stained black, with the grain of the timber left visible across the flared sides. The structure drawing sets out the sprayer, the glass body and the wooden cap as separate parts and notes the bottle as applied to the packaging of perfume, and the customisation drawing states that the cap can be changed and that your logo can be printed on the decoration area. Glass containers start at MOQ 5000 pcs with custom samples available.
| Parameter | Specifications |
|---|---|
|
Product Name |
100ml Grey Glass Perfume Bottle with a Flared Wooden Cap |
|
Capacity |
100ml (Also Available in 30ml and 50ml) |
|
Material |
Glass with Metal Sprayer and a Solid Wooden Cap |
|
Reference Size |
122 mm Overall Height (Cap Included) × 54 mm Body Width |
|
Bottle Shape |
Straight-Sided Body with a Rounded Shoulder, a Short Neck and a Thick Level Base, in Smoky Grey Translucent Glass |
|
Cap |
Flared Wooden Cap with a Flat Top Widening above a Domed Seat (Listed as a Wooden Cap on the Drawing), Shown in Black-Stained Wood with Visible Grain, Changeable |
|
MOQ (Minimum Order Qty) |
5000 pcs (Available for Custom Sample) |
|
Surface Finish |
Colour Coating, Frosting, Gradient Spraying, Silk Screen, Hot Stamping, Wood Staining |
|
Neck Finish |
Standard Perfume Crimp Neck for Sprayer / Atomizer |
Smoky Grey Translucent Glass
Grey tint held in the glass rather than coated on the outside
Body stays transparent, so the dip tube and the liquid line are visible
Glass reads darker where the wall is thick and lighter at the shoulder
Softens the colour of the fragrance inside instead of hiding it
Flared Wooden Cap
Solid timber, stained black with the grain left visible
Flat top flaring wider than the seating base
Domed seat closes over the collar and the sprayer
Changeable, so one body carries a different cap per fragrance
Straight-Sided Body and Size Range
Straight sides, rounded shoulder and a short neck
122 mm overall height with the cap fitted, base to cap top
54 mm body width, the figure to work from when sizing an insert
Same design made in 100ml, 30ml and 50ml
Gold Sprayer and Crimp Neck
Metal sprayer with a gold finish, drawn as a separate part from the body
Shown with the cap removed so the sprayer stands clear of the shoulder
Standard perfume crimp neck, so the pump can be supplied or sourced separately
Round, even actuation across the full travel of the pump
Decoration Area
Wide flat body panel for a wrap label or a printed logo
Shown with a white label and, in the second shot, with gold lettering set straight onto the glass
Metal sprayer finish matched to the lettering if the gold is carried through
Drawing notes the bottle as applied to the packaging of perfume
The cap is the part that carries the character of this bottle, so it is worth planning first: the timber takes a stain, the grain stays visible through a dark finish, and the flat top gives a surface that can take an engraved or applied mark.
Wood cap finishing
Black, walnut, natural or bleached stain on the same turned profile
Matte oil and wax finishes that keep the grain open to the touch
Lacquered finish for a sealed, wipe-clean surface
Laser engraving or a metal plate set into the flat top
Cap can be changed for a different profile, timber or finish on the same body
Body decoration
Grey tint kept in the glass, or a colour coating sprayed onto the surface
Gradient spraying if the colour should drain to clear towards the base
Frosted and matte treatments for a softer hand feel
Mirror electroplating for a fully reflective body
Plain clear glass, if the grey is not wanted
Logo and labelling

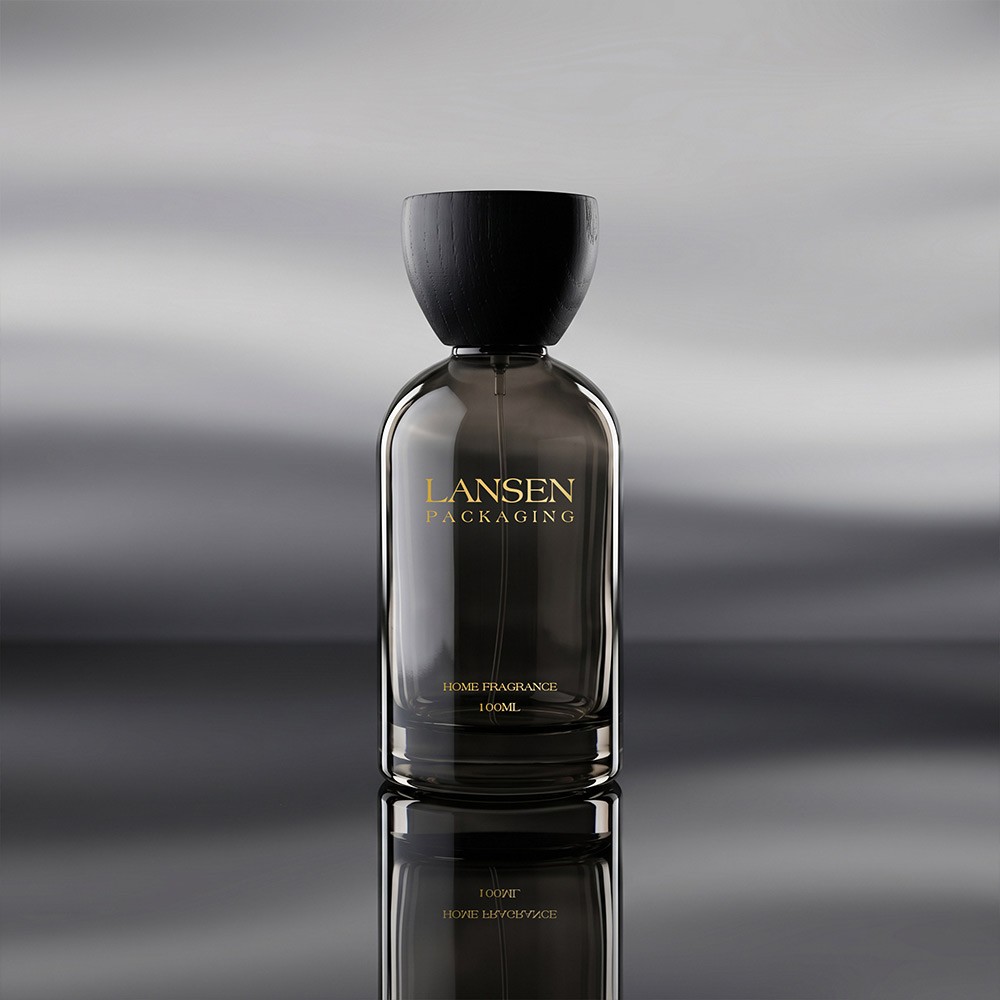

Text printed directly on the glass, as shown in the gold lettering shot
Silk screen printing in one or more colours
Hot stamping in gold or silver foil
Paper or film label wrapped across the body panel
Mark engraved into the cap instead of the bottle
Collar and sprayer
Gold, silver or black finish on the metal sprayer
Sprayer supplied fitted and crimped, or packed separately for local filling
Sizes supplied on their own, with the cap fitted or boxed apart

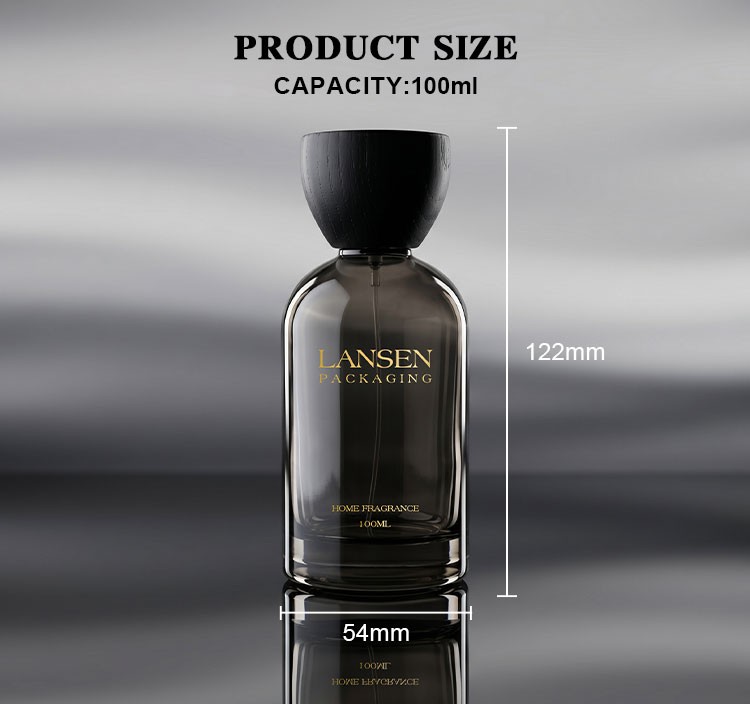

The size drawing gives two figures: 122 mm overall height and 54 mm across the body, with the capacity stated on the same drawing as 100ml. The height is measured from the base to the top of the fitted cap, so it already includes the closure, and the base is thick and level, which is what keeps that height stable on a shelf. The 54 mm figure is the one to work from when sizing an insert or an outer carton. The same design is also made in 30ml and 50ml.
The cap is solid timber rather than a plastic shell, stained black so the grain still reads across the flared sides. It is turned with a flat top that flares wider than its seating base and a domed seat that closes over the collar and the sprayer. The structure drawing lists the sprayer, the glass body and the wooden cap as separate parts. Because it is timber, the finish can be changed to a matte oil, a wax or a lacquer, and the flat top can take an engraved mark or an applied metal plate, and the customisation drawing states that the cap can be changed.
Translucent grey allows either route. A tint held in the glass keeps the colour even from the base to the shoulder and does not wear off the surface, and the body stays transparent enough to show the dip tube and the liquid line inside. A sprayed coating gives a wider colour range and can be drained into a gradient that clears towards the base. Frosting, mirror electroplating and plain clear glass are also available on the same mould.
The drawing sets out a metal sprayer on a standard perfume crimp neck, finished in gold, and draws it as a separate part from the glass body, so the pump can be supplied fitted and crimped or packed separately for filling on your own line. The same neck takes a silver or a black sprayer if the gold is not wanted, and the cap seat is cut to close over the collar, so the bottle still measures 122 mm overall with the cap in place.
MOQ is 5000 pcs for glass containers, with custom samples available before mass production. The customisation drawing states that the cap can be changed and that your logo can be printed, and the body is decorated here in two ways – a white wrap label across the wide flat panel, and gold lettering set straight onto the glass. Silk screen printing, hot stamping in gold or silver foil, and engraving into the wooden cap are all available as alternatives to a paper label. The drawing notes the bottle as applied to the packaging of perfume.
