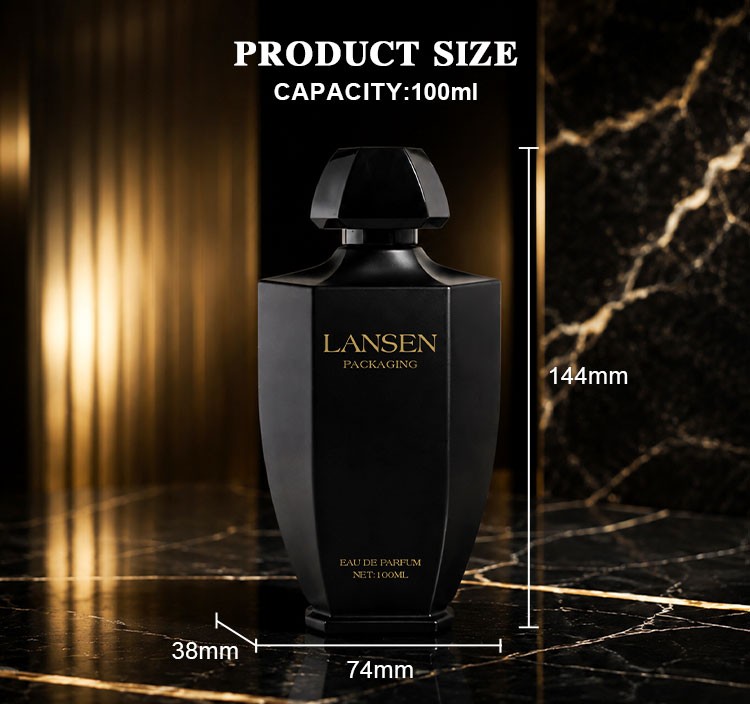

This 100ml flacon stands 144 mm from the base to the top of the fitted cap, over a footprint of 74 mm at the front and 38 mm front to back. All three figures are taken from the size drawing, which states the capacity as 100ml, the same figure printed on the bottle as NET:100ML.
The silhouette is a tapered one. The body is widest just below the shoulder, and both side walls angle steadily inward as they descend, so the bottle finishes on a narrow stepped foot instead of the full width it starts with. The vertical edges are chamfered and the shoulder itself is cut into flat facets, which puts a hard line at the top of the bottle and a changing fall of light down each angled side.

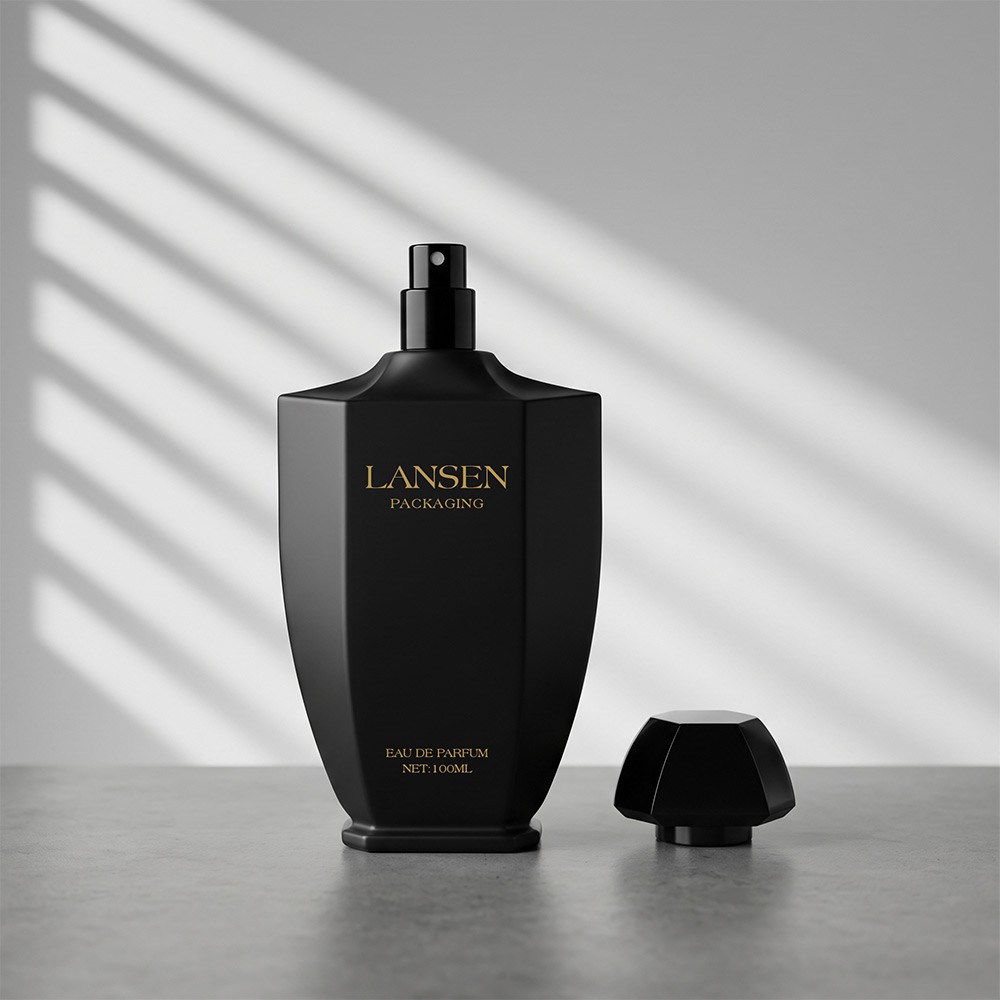

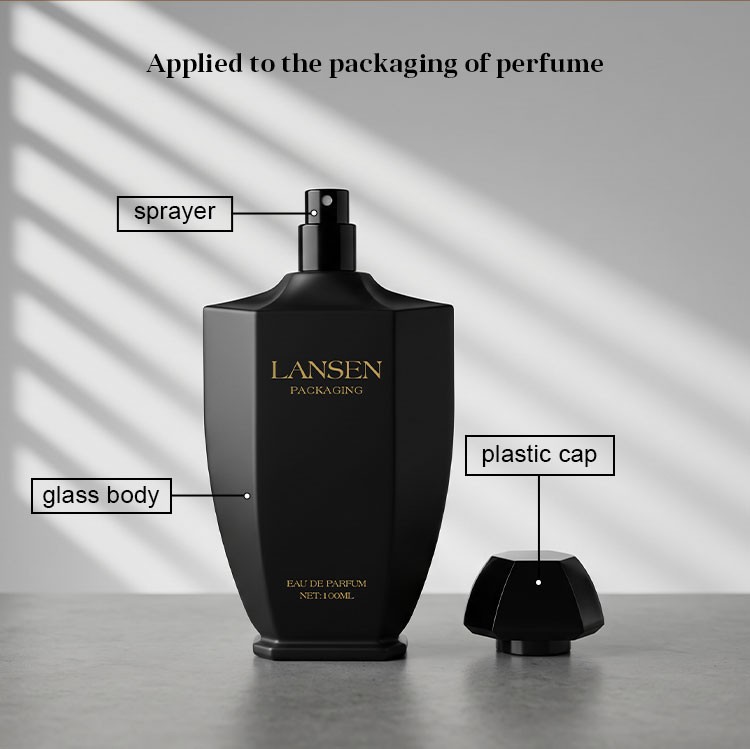

The closure is a faceted plastic cap cut with the same angular language as the shoulder. The structure drawing separates the assembly into sprayer, glass body and plastic cap, and the customisation drawing states that the cap can be changed, so one body can carry a different cap profile or colour for each fragrance. The drawing notes the bottle as applied to the packaging of perfume, and it ships in the rigid two panel gift box with a gold metal nameplate shown in these photographs. Glass containers start at MOQ 5000 pcs with custom samples available.
| Parameter | Specifications |
|---|---|
|
Product Name |
100ml Tapered Faceted Glass Perfume Bottle |
|
Capacity |
100ml |
|
Material |
Glass with Metal Sprayer and Faceted Plastic Cap |
|
Reference Size |
144 mm Overall Height (Cap Included) × 74 mm Width × 38 mm Depth |
|
Bottle Shape |
Tapered Faceted Body, Widest Below the Shoulder and Narrowing to a Stepped Foot, with Chamfered Vertical Edges |
|
Cap |
Faceted Waisted Plastic Cap Matching the Shoulder Cut, Changeable |
|
MOQ (Minimum Order Qty) |
5000 pcs (Available for Custom Sample) |
|
Surface Finish |
Colour Coating, Electroplating, Gradient Spraying, Frosting, Silk Screen, Hot Stamping |
|
Neck Finish |
Standard Perfume Crimp Neck for Sprayer / Atomizer |
Tapered Faceted Glass Body
Widest point sits just below the shoulder
Both side walls angle inward as they descend to a narrow foot
Chamfered vertical edges run the full height of the body
Sits on a stepped moulded foot rather than on the full width of the base
Angular Faceted Shoulder
Shoulder cut into flat facets that meet the neck on a hard line
Opposing facets catch the light in sequence as the bottle is turned
Short neck between shoulder and cap, so the cap reads as its own block
Faceted Plastic Cap
Cap cut with the same angular language as the shoulder
Waisted profile that steps in below its widest facet
Changeable, so one body carries a different cap profile or colour per fragrance
Metal Sprayer on a Crimp Neck
Standard perfume crimp neck that takes ordinary pumps and atomizers
Seated fit that resists leakage in transit
144 mm overall height with the cap fitted, base to cap top
74 mm by 38 mm footprint, the number to work from when sizing an insert
Perfume Packaging
Drawing notes the bottle as applied to the packaging of perfume
Glass left clear, tinted or coated so the juice colour works either way
Available with the rigid two panel gift box and gold nameplate shown here
The cap can be changed for a different colour or profile
Cap colourways include black, white, silver or a shade matched to the glass
Opaque colour coating in any solid shade
Tinted glass in pale pastels or deep saturated tones
Mirror electroplating for a fully reflective surface
Gradient spraying that holds at the shoulder and clears towards the foot
Frosted and matte treatments for a soft touch look
Silk screen printing in one or more colours
Hot stamping in gold or silver foil
Brand logo applied to the front panel

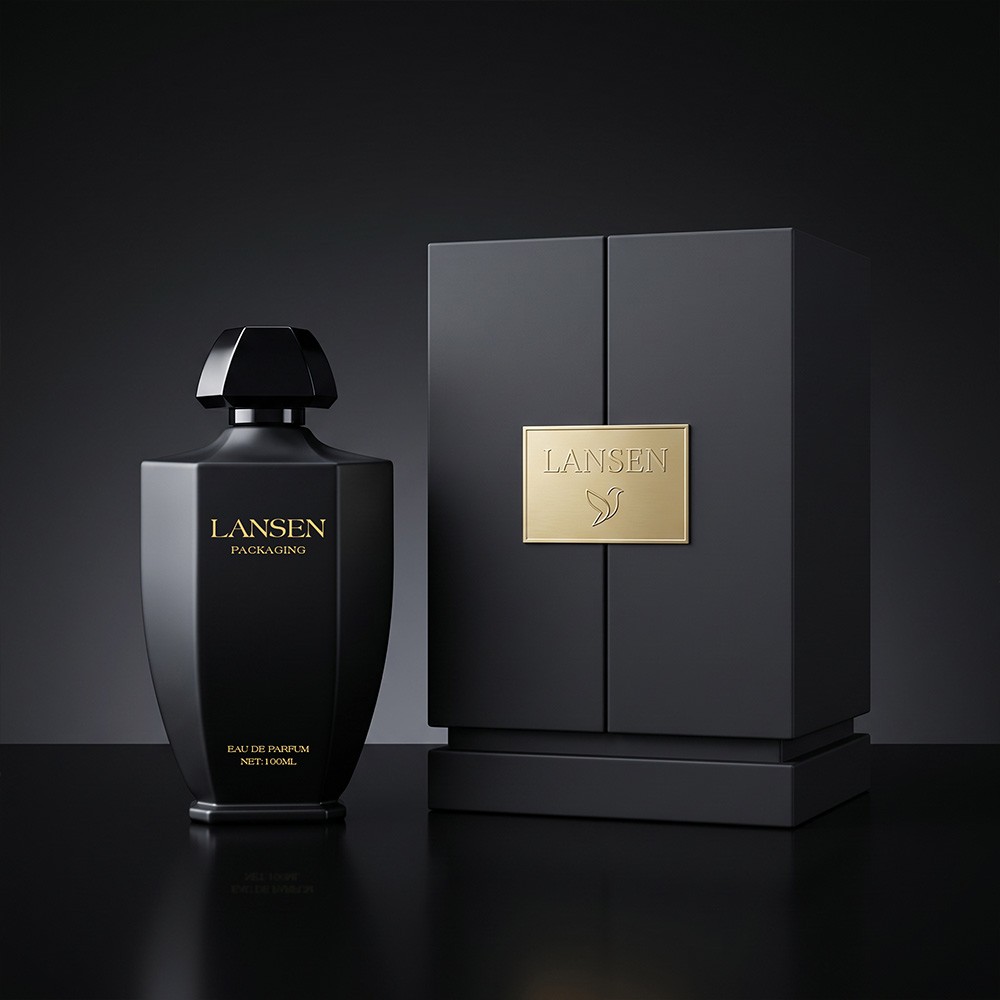

Rigid two panel gift box with a gold metal nameplate and a cut display insert
The size drawing gives three figures: 144 mm overall height, 74 mm across the front and 38 mm from front to back. The height is measured from the base to the top of the fitted cap, so it already includes the closure. Capacity is stated on the same drawing as 100ml, and the bottle itself is printed NET:100ML. For packing calculations the 74 mm by 38 mm footprint is the pair to work from, and because the body tapers it is the widest point just under the shoulder that governs the insert rather than the narrow foot.
The widest point of the body sits just below the shoulder, and from there both side walls angle inward on their way down to a narrow stepped foot. That taper puts the visual weight of the bottle at the top and gives the base a light, lifted look, which is the opposite of a straight sided flacon. It also means the profile changes continuously as you walk past it, and the chamfered vertical edges split the surface into planes that hold light at slightly different angles.
The closure is a faceted plastic cap cut with the same angular language as the shoulder, with a waisted profile that steps in below its widest facet. The structure drawing lists the sprayer, the glass body and the plastic cap as separate parts, and the customisation drawing states that the cap can be changed. One glass body can therefore carry a different cap profile or colour for each fragrance in a range, without any change to the bottle mould.

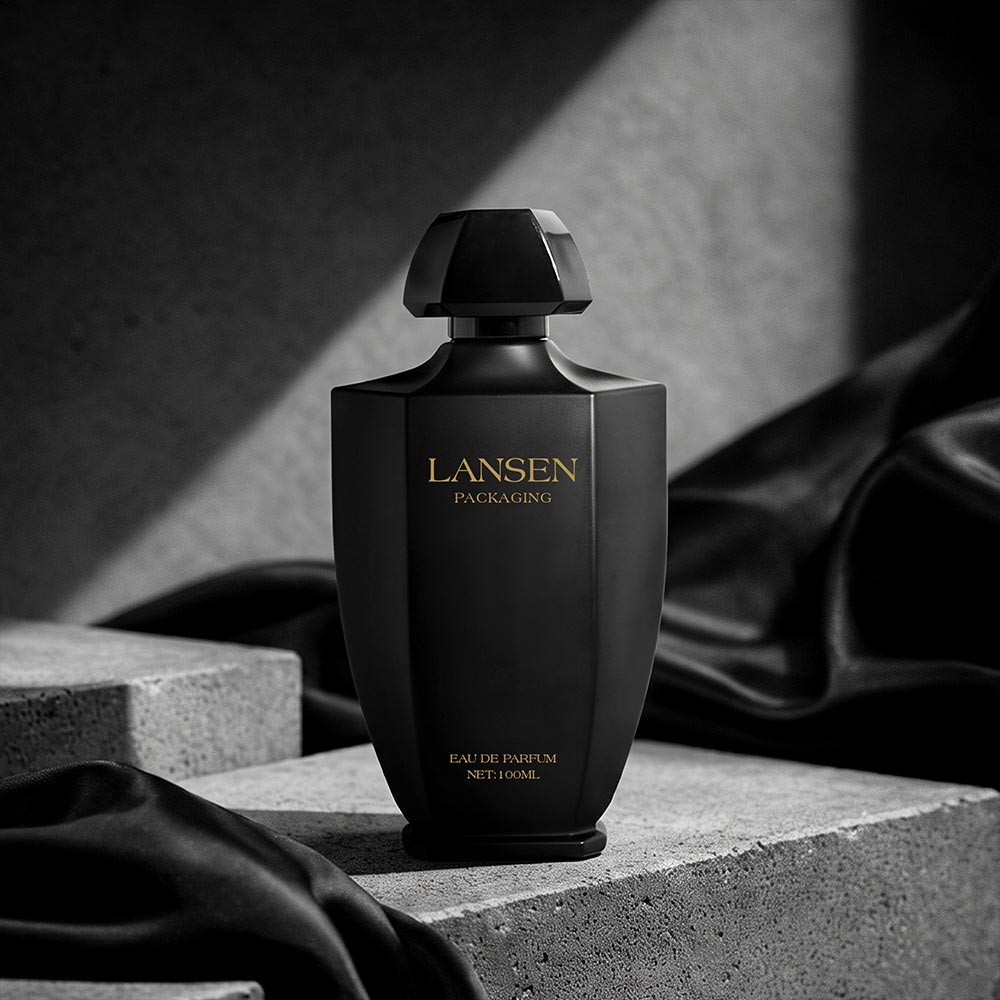

The body can be left clear and tinted, colour coated in any opaque shade, mirror electroplated, gradient sprayed, or frosted and matte finished. The sample shown is a solid matt black, which suits the chamfered edges because the facets read as tonal shifts rather than as mirror highlights. The brand logo is applied to the front panel by silk screen printing or hot stamping in gold or silver foil, and the gift box in the photographs uses a metal nameplate instead of printed artwork.
MOQ is 5000 pcs for glass containers, with custom samples available before mass production. The drawing notes the bottle as applied to the packaging of perfume, and it can ship on its own or as a set with the rigid two panel gift box, gold metal nameplate and cut display insert shown here. The sprayer and the cap are supplied fitted or ordered separately, and since the cap is a changeable component it can be ordered in more than one colour within a single project.
