At 102 mm tall and 34 mm across the base, this 30ml flacon is narrow enough to close a hand around and tall enough to read as a dresser piece rather than a sample vial. Both figures come from the size drawing, and the height is measured from the base to the top of the fitted cap.
The two long sides of the body are cut as a wave. The glass turns inward just above the base, swells back out through the middle and narrows again as it meets the shoulder. That serpentine line does most of the work on this bottle, because it throws a moving highlight down each edge and stops a small flacon from reading as a plain block in a photograph.

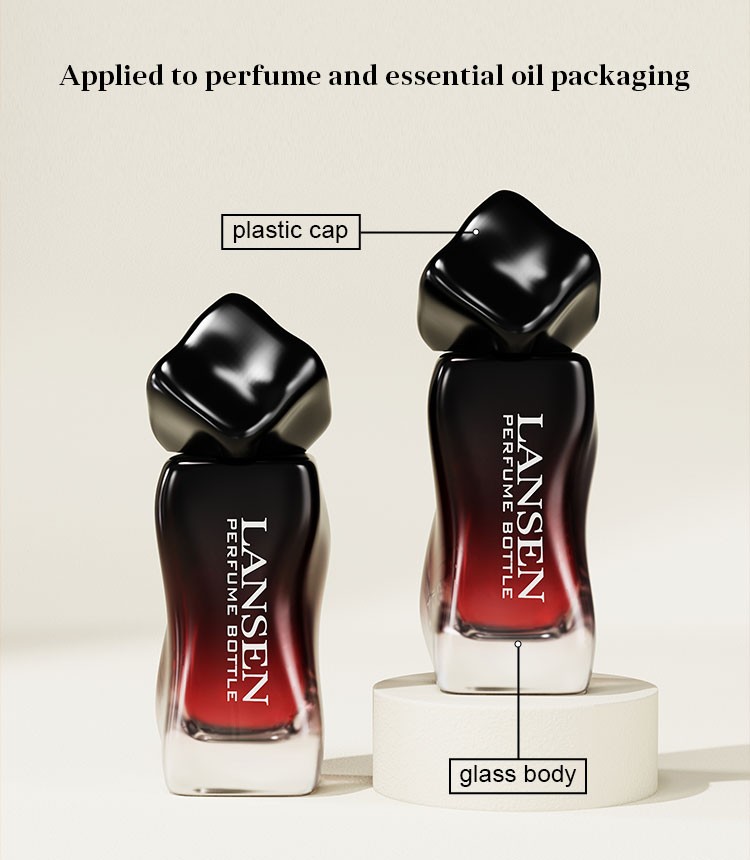

The closure is a twisted rounded cube plastic cap that stands proud of the shoulder. The structure drawing labels the parts as plastic cap and glass body, so the cap is a separate component that can be swapped without touching the mould. A thick clear glass plinth carries the body and adds weight in the hand, and the same bottle is applied to perfume and essential oil packaging. Glass containers start at MOQ 5000 pcs with custom samples available.
| Parameter | Specifications |
|---|---|
|
Product Name |
30ml Wavy Shaped Glass Perfume Bottle |
|
Capacity |
30ml |
|
Material |
Glass with Metal Sprayer and Twisted Rounded Cube Plastic Cap |
|
Reference Size |
102 mm Overall Height (Cap Included) × 34 mm Base Width |
|
Bottle Shape |
Wavy Bodied Rectangular Flacon with a Pinched Waist, Rounded Corners and a Wide Flat Base |
|
Cap |
Twisted Rounded Cube Plastic Cap with a Faceted Top, Changeable |
|
MOQ (Minimum Order Qty) |
5000 pcs (Available for Custom Sample) |
|
Surface Finish |
Colour Coating, Electroplating, Gradient Spraying, Frosting, Silk Screen, Hot Stamping |
|
Neck Finish |
Standard Perfume Crimp Neck for Sprayer / Atomizer |
Wavy Bodied Glass Body
Long sides cut as a wave, with a concave notch just above the base
Body swells back out through the middle and narrows into the shoulder
Rounded corners on the flats so the edges read soft rather than cut
Serpentine line throws a moving highlight down each side
Thick Clear Glass Base
Heavy plinth under the body for weight in the hand
Wide flat foot that stands unaided on a shelf or a display tray
Clear glass foot so the colour of the juice stays visible down to the base
Twisted Rounded Cube Plastic Cap
Chunky cap with a rounded square section and a twisted facet across the top
Stands proud of the shoulder, so the silhouette reads as two stacked blocks
Changeable, so one body carries a different cap colour or profile per fragrance
Metal Sprayer on a Crimp Neck
Standard perfume crimp neck that takes ordinary pumps and atomizers
Even atomisation with a seated fit that resists leakage in transit
102 mm overall height with the cap fitted, base to cap top
34 mm base width, the number to work from when sizing an insert
Perfume and Essential Oil
Neck and seal suit alcohol based fragrance and oil based blends
Glass left clear, tinted or coated so the juice colour works either way
Cap can be changed to a different colour or profile
Cap moulded in white, black, silver or matched to the glass
Opaque colour coating in any solid shade
Transparent tinted glass in pastel or deep tones
Mirrored electroplating
Gradient spraying that stays solid at the shoulder and clears at the base
Frosted and matte finishing
Silk screen printing
Hot stamping with gold or silver foil
Brand logo printed on the front flat, horizontal or vertical
Matching rigid gift box with a display insert

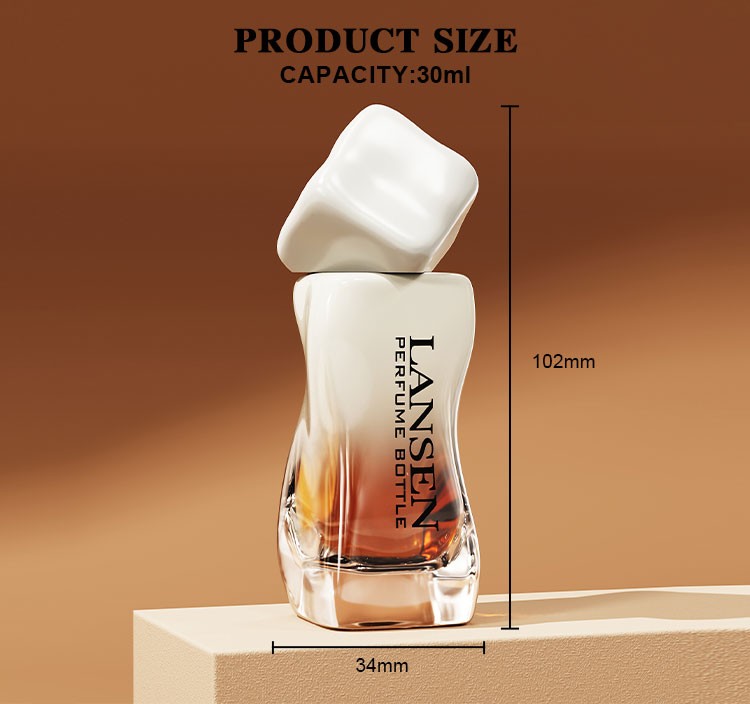

The bottle is 102 mm tall, measured from the base to the top of the fitted cap, and 34 mm across the base. The capacity printed on the size drawing is 30ml. The 34 mm base width is the figure to work from when sizing a display insert or an outer carton, because the wavy sides mean the body is narrower at the notch above the base than it is at its widest point.

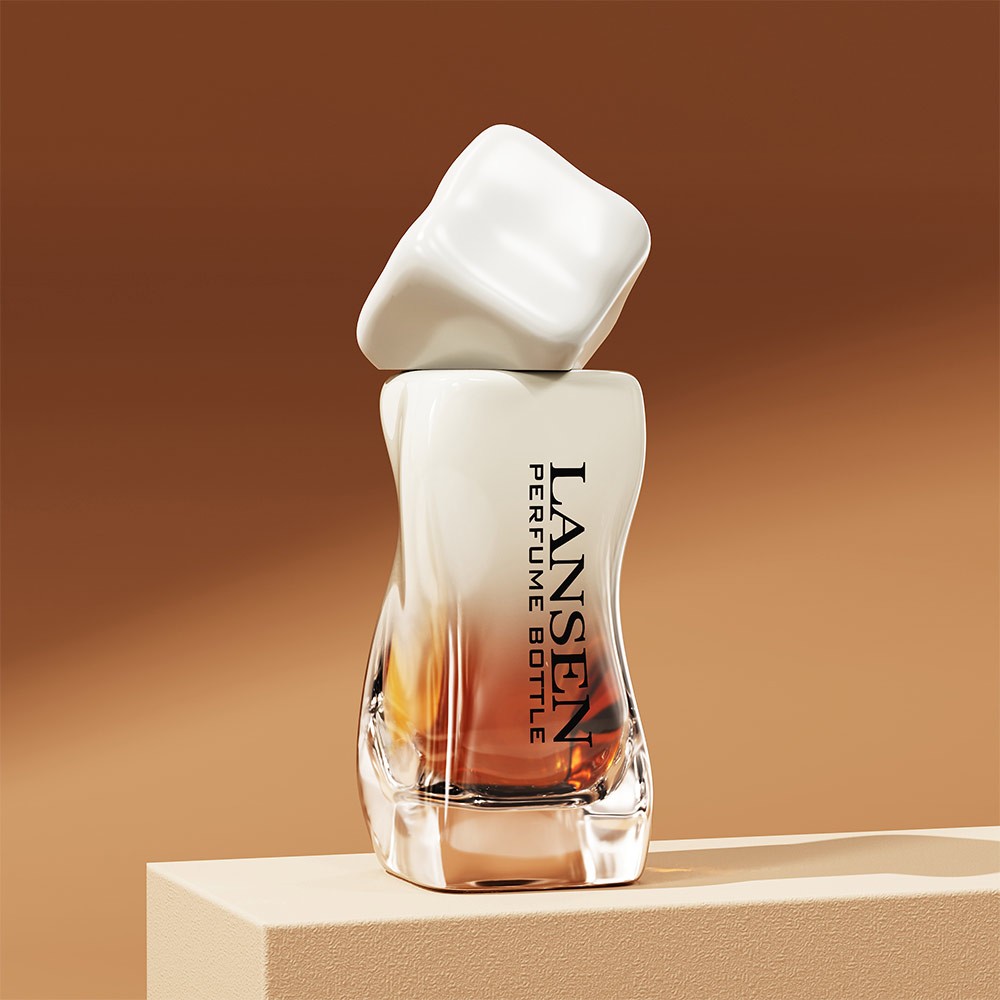

The closure is a plastic cap with a rounded square section and a twisted facet across the top, shown in white, black and silver in the product shots. The structure drawing lists the cap and the glass body as separate parts, and the customisation drawing states that the cap can be changed, so the colour or profile can be swapped while the bottle body stays the same.
The two long sides of the body are cut as a wave rather than as straight walls. The glass turns inward just above the base, swells back out through the middle and narrows again at the shoulder. The effect shows up most clearly on a coated or gradient sprayed bottle, because the curve catches light differently along its length and the bottle stops reading as a plain block.

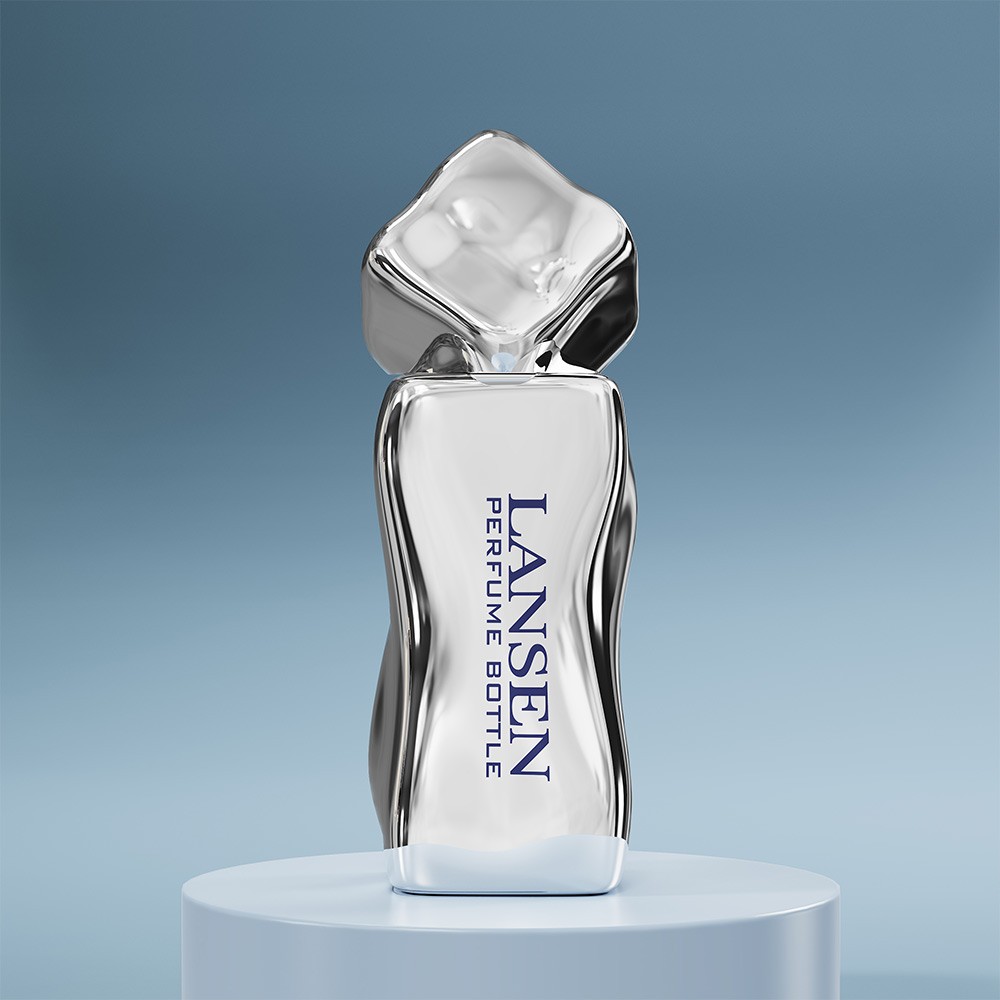

The body can be left clear and tinted, colour coated in any opaque shade, mirror electroplated, gradient sprayed, or frosted and matte finished. Gradient spraying is the finish used in most of the sample shots, where the colour stays solid at the shoulder and clears towards the base, and the brand logo is applied to the front flat by silk screen printing or hot stamping.
MOQ is 5000 pcs for glass containers, with custom samples available before mass production. The same body is applied to perfume and essential oil packaging, and the bottle can ship on its own or as a set with a matching rigid gift box and display insert. The cap and sprayer are supplied fitted to the bottle or ordered separately.
